Key Selling Points
- Extreme Range & Accuracy: Measures up to 30km (visibility-dependent) with ±0.03mrad optical stability.
- Compact & Rugged: Lightweight (≤2.6kg), compact design (240.5×116×80.5mm) for mobile deployment.
- All-Weather Reliability: Operates in -55℃ to +70℃, perfect for harsh environments.
- Customizable: Adjust specifications (wavelength, interfaces) to meet mission needs.
Applications
- Military field testing, armored vehicles, and airborne electro-optical pods.
- Laser-guided system calibration and long-range surveillance.
Specifications
| Laser wavelength | 1.06±0.02μm |
| Laser energy | ≥100mJ |
| Energy fluctuation range | ≤8% |
| Laser pulse width | 15ns±5ns |
| Beam angle | ≤0.2mrad |
| Maximum measuring range | With visibility of 20 km, moderate turbulence, and a target reflectivity greater than 0.2, the maximum detection range for a 4 m × 6 m target shall be no less than 30 km. |
| Minimum measuring range | ≤300m |
| Optical axis instability | ≤0.03mrad |
| Periodic accuracy | ≤2.5μs |

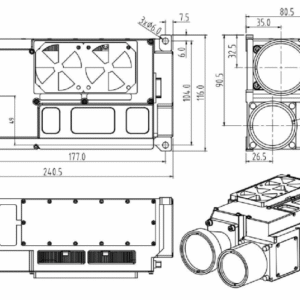

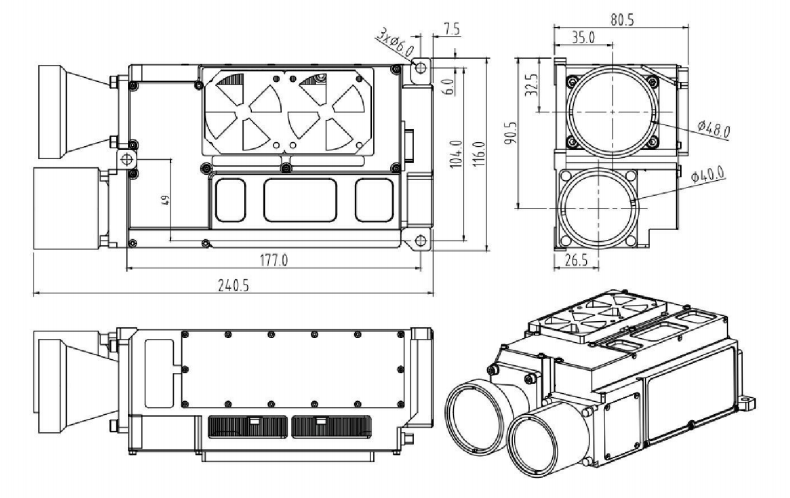

| Volume | 240.5×116×80.5mm |
| Weight | ≤2.6kg |
| Supply voltage | DC 22V~31V |
| Working power | Average power ≤150 W, peak power ≤200 W. |
| Operating temperature | -55℃~+70℃ |
| Storage temperature | -55℃~+70℃ |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
Compliance
Designed to meet MIL-STD-810G standards for shock/vibration resistance.
