Key Selling Points
- Eye-Safe Technology: 1535nm laser ensures compliance with IEC 60825-1 safety standards.
- High Precision: ±1m accuracy and 98%+ detection rate for reliable results.
- Compact & Durable: Weighs ≤230g with IP64-rated shock-resistant housing.
- Multi-Frequency Modes: Single-shot, 1Hz, or 5Hz continuous measurement.
- Low Power Consumption: ≤4W average power with 18-36V DC input.
Applications
- Industrial automation & robotics
- Drone-based surveying/mapping
- Traffic monitoring & infrastructure inspection
- Security surveillance & environmental monitoring
Main Functions
- Laser ranging functionality
- Power-on self-check and temperature data acquisition
- Distance gating functionality
- First/last target prioritization measurement
- Reverse polarity protection
- Self-diagnostic function
- Laser pulse counting capability
- Serial port firmware upgrade
- Independent power-on control signal
Specifications
| Operating Wavelength | 1535nm ±10nm |
| Maximum Range | ≥10,500m |
| Blind Zone | ≤50m |
| Accuracy | ±1m |
| Detection Rate | ≥98% |
| Distance Resolution | ≤40m |
| Measurement Frequency | Single-shot, 1Hz, 5Hz |
| Weight | ≤230g |

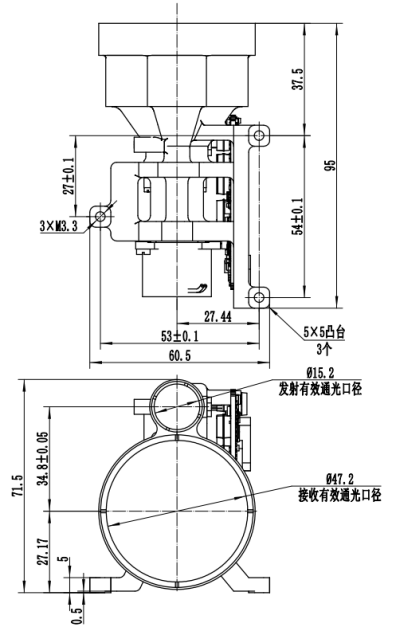

| Dimensions | ≤95mm × 60.5mm × 71.5mm |
| Power Supply Voltage | 18V ~ 36V |
| Power Consumption | Standby: ≤1.8W; Average: ≤4W |
| Environmental Adaptability | Operating Temperature: -40℃ ~ +60℃ |
| Storage Temperature: -55℃ ~ +70℃ |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
