Key Selling Points
- Eye-Safe Technology: 1535nm laser (invisible, Class 1M compliant).
- Extreme Precision: ±1m accuracy, 98%+ hit rate.
- Compact & Durable: Ruggedized for harsh conditions (IP64 equivalent).
- Smart Features: Distance gating, self-diagnostics, low-power mode (<6W).
- Easy Integration: Plug-and-play RS422 interface.
Applications
- Industrial automation
- Security systems
- Topographic mapping
- UAV navigation
- Forestry management
- Infrastructure inspection
Main Functions
- Laser Ranging Function
- Power-On & Temperature Monitoring Function
- Distance Gating Capability
- First/Last Target Priority Measurement
- Self-Diagnostic Function
- Serial Port Firmware Update Capability
Specifications
| Operating Wavelength | 1535nm ±10nm |
| Ranging Capability | ≥17,500m |
| Blind Zone | ≤120m |
| Accuracy | ±1m |
| Detection Rate | ≥98% |
| Distance Resolution | ≤50m |
| Measurement Frequency | Single-shot, 1Hz |
| Weight | ≤596g |

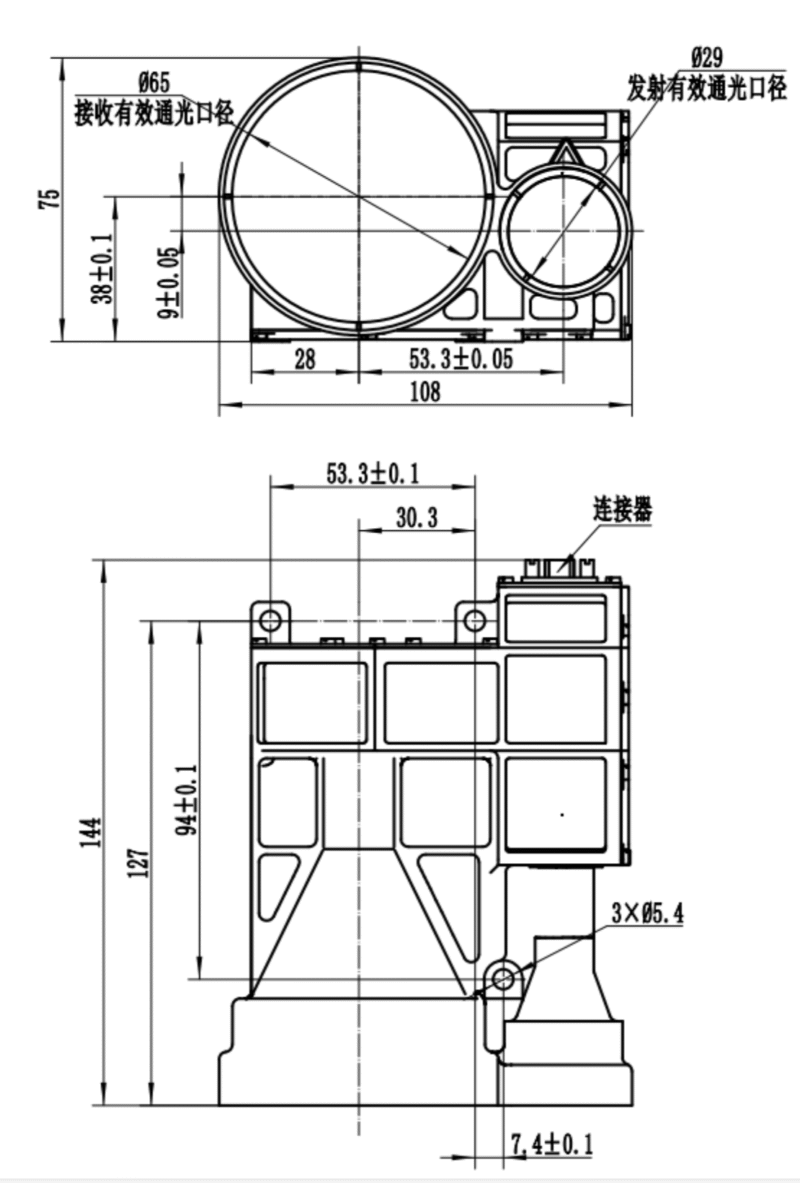

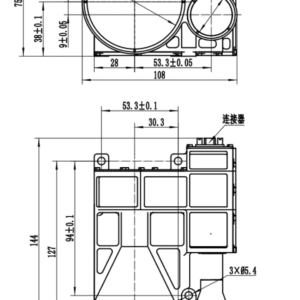

| Dimensions | ≤144mm × 108mm × 75mm |
| Power Supply Voltage | 18V ~ 36V |
| Power Consumption | Standby: ≤2.5W; Average: ≤6W |
| Environmental Adaptability | Operating Temperature: -40°C to +60°C |
| Storage Temperature: -55°C to +70°C |
