Key Features
- Ultra-compact (55x34x45mm) & lightweight (85g)
- Military-grade accuracy (±1m) up to 4km
- Adjustable repetition rate (1Hz–10Hz) for dynamic scenarios
- Eye-safe 1535nm wavelength with minimal beam divergence (0.5mrad)
- Low power consumption (DC 9–15V)
Applications
- Tactical defense systems
- Hunting
- Maritime navigation
- Construction surveying
- Outdoor exploration
Specifications
| Laser wavelength | 1535±5nm |
| Maximum measuring range | Under conditions of visibility not less than 10 km and relative humidity not greater than 80%, with moderate atmospheric turbulence and a target reflectivity of 0.2, the maximum detection range for a 2.3 m × 2.3 m target shall be no less than 4 km |
| Minimum measuring range | ≤30m |
| Ranging accuracy | ≤±1m |
| Repetition frequency | Adjustable from 1 Hz to 10 Hz. |
| Accuracy rate | ≥98% |
| Beam angle | ≤0.5mrad |

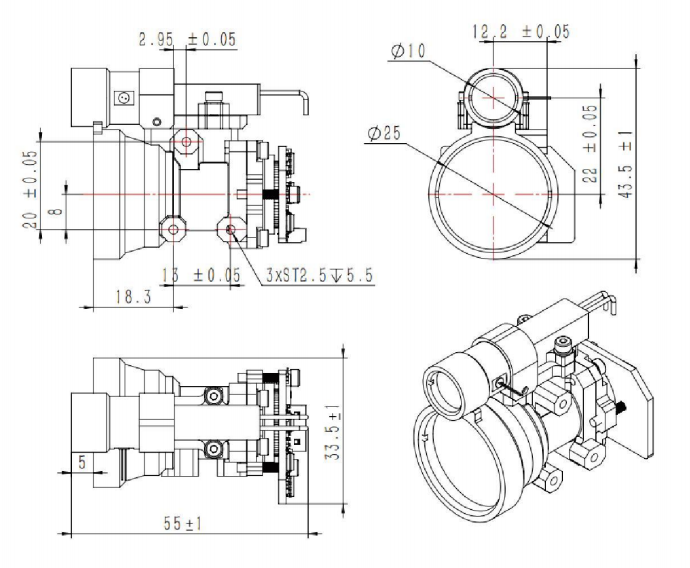

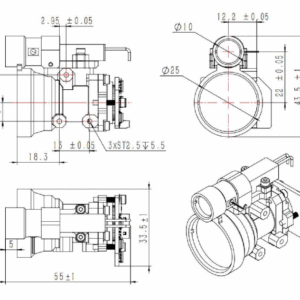

| Volume | ≤55×34×45mm |
| Weight | ≤85g |
| Supply voltage | DC 9~15V |
| Operating temperature | -40℃~+60℃ |
| Storage temperature | -50℃~+70℃ |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
