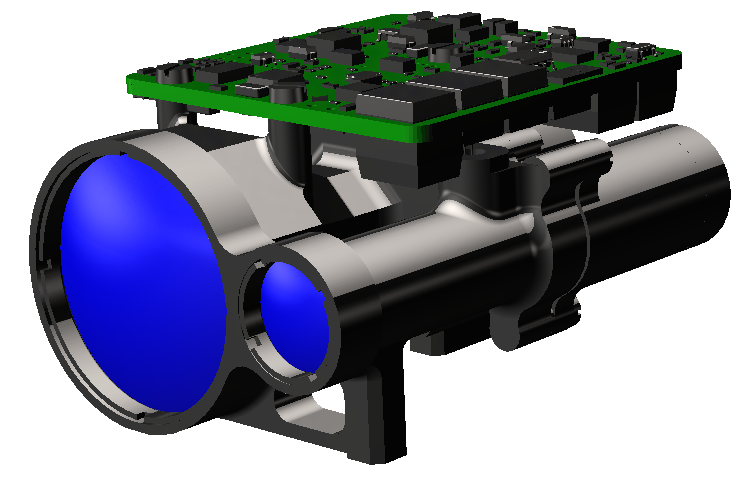

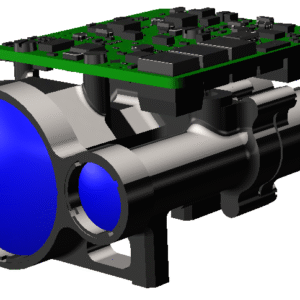

Key Selling Points
- Eye-Safe & Reliable: 1535nm laser (Class 1M) ensures user and environmental safety.
- Military-Grade Durability: Operates in extreme temperatures (-40°C to +70°C) and resists shock/vibration.
- High Precision: ±2m accuracy with 5km max range for reliable data.
- Compact & Lightweight: 62mm x 43.5mm x 34mm, 80g—perfect for mobile applications.
- Versatile Modes: Single/continuous measurement and self-diagnostic functions.
- Easy Integration: RS422 interface and plug-and-play compatibility with drones/robotics.
Main Functions
a) Distance Measurement & Real-Time Reporting: Accurately measures and stably reports target distances. Ensures no zero jumps or false readings during continuous measurement of stable targets.
b) Single/Continuous Measurement Modes: Supports both single-shot and adjustable-frequency (1–5Hz) continuous ranging.
c) Laser Emission Count Reporting: Tracks and reports total laser pulses for maintenance monitoring.
d) Self-Diagnostic Function:
- Automatic power-on self-test (POST).
- Command-triggered self-test to verify critical component status (laser health, APD voltage, temperature).
e) Fail-Safe Protection:
- Wide-voltage input design (10–14V DC).
- Reverse polarity protection to prevent damage from incorrect wiring.
Applications
- Drones & UAVs (navigation, mapping)
- Robotics & automation (obstacle detection)
- Industrial surveying & construction
- Outdoor sports (hunting, golf, mountaineering)
- Security systems & traffic monitoring
Specifications
| Laser Wavelength | 1535nm ±10nm |
| Maximum Range | ≥5km (under conditions: atmospheric visibility ≥8km, relative humidity ≤80%, and grazing angle ≤79° on surfaces including sand, grass, desert, or gravel). Grazing angle: Angle between the emitted laser beam and the target’s surface normal. |
| Minimum Range | ≤20m |
| Accuracy | ±2m (RMS) |
| Repetition Rate | Single-shot or adjustable 1~5Hz |
| Beam Divergence | ≤0.5mrad |
| Pulse Energy | ≥150μJ (at 25℃±5℃) |
| Pulse Width | 6ns ±2ns |
| Accuracy Rate | ≥98% |
| Continuous Operation | ≥5min (full temperature range) |
| Parallelism of the Emission Optical Axis to the Mounting Reference Surface | ≤0.3mrad |
| Mounting Surface Flatness | ≤0.02mm (design-guaranteed) |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -55℃~+75℃ |
| Transportation | Compliant with road/rail transport conditions |
| Shock Test (System-Level Validation) | Withstands a half-sine wave pulse of 50g peak acceleration (490m/s²) with 11ms duration, applied 2 times on each of three mutually perpendicular axes. |
| Voltage | DC 10~14V (with input polarity protection) |
| Average Power Consumption | ≤2W |
| Peak Power Consumption | ≤5W |

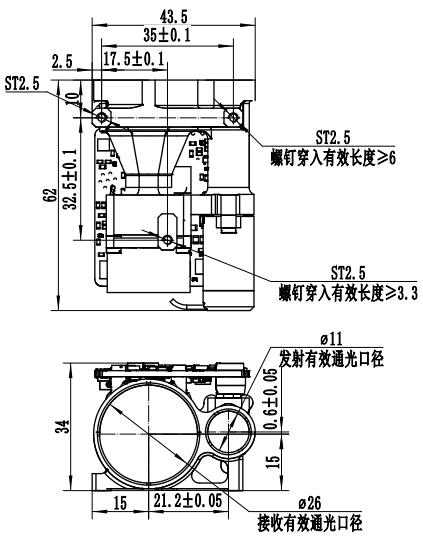

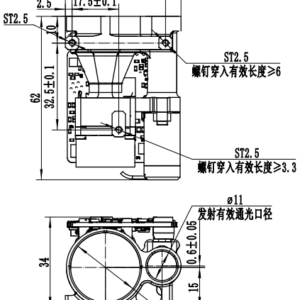

| External dimensions | 62mm×43.5mm×34mm(L×W×H) |
| Weight | ≤80g |
Electrical Interface

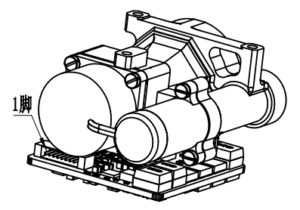

The host machine communicates with the rangefinder via an 8-pin connector with 1.25mm pitch for interconnection testing. The pin definitions for the rangefinder’s power supply and communication port are listed in Table, and the position of Pin 1 is shown in Figure .
Table: Pin Definitions for Power and Communication Port
| Pin Number | Definition | Remarks |
|---|---|---|
| 1 | RS422 RX+ | RS422 Receive+ |
| 2 | RS422 RX- | RS422 Receive- |
| 3 | RS422 TX- | RS422 Transmit- |
| 4 | RS422 TX+ | RS422 Transmit+ |
| 5 | GND | Communication interface ground |
| 6 | +12V | Power supply |
| 7 | GND | Power ground |
| 8 | Reserved | Reserved for future use |
Key Technical Notes:
- RS422 Compatibility: Ensures stable serial communication in noisy environments.
- Dual Ground Pins: Separates communication and power grounds to minimize interference.
- Future-Proofing: Pin 8 is reserved for potential functional expansions (e.g., trigger signals or firmware updates).
Certifications
- CE, FCC, RoHS compliant.
