Key Selling Points
- Ultra-Compact & Lightweight (≤100g, 68×42.5x55mm)
- Extreme Environment Resilience (-40°C to +60°C)
- Adjustable Repetition Rate (1Hz–10Hz)
- High Accuracy Rate (≥98%) with Low Beam Divergence (≤0.3mrad)
Applications
- Military targeting
- Hunting
- Surveying
- Industrial inspection
- Integration with electro-optical systems
Specifications
| Laser wavelength | 1535±5nm |
| Maximum measuring range | Under conditions of visibility not less than 10 km and relative humidity not greater than 80%, with moderate atmospheric turbulence and a target reflectivity of 0.2, the maximum detection range for a 2.3 m × 2.3 m target shall be no less than 8km |
| Minimum measuring range | ≤30m |
| Ranging accuracy | ≤±1m |
| Repetition frequency | Adjustable from 1Hz to 10Hz |
| Accuracy rate | ≥98% |
| Beam angle | ≤0.3mrad |

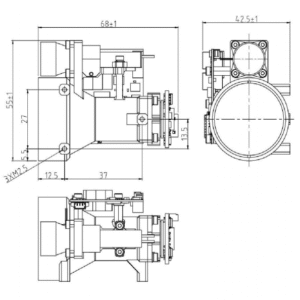

| Volume | ≤68×42.5×55 mm |
| Weight | ≤100g |
| Supply voltage | DC 9~15V |
| Operating temperature | -40℃~+60℃ |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
Certifications
Customizable to meet MIL-STD, CE, and RoHS standards (upon request).
