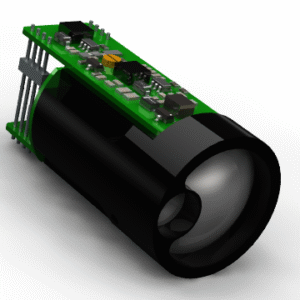

Key Selling Points
- Ultra-Compact & Lightweight: Ideal for space-constrained applications.
- High Accuracy: ±(1m + 0.25%×L) precision for critical measurements.
- Versatile Modes: Single-shot, 1Hz, or 2Hz measurement frequencies.
- Low Power: 0.6W standby, 0.8W operational.
- Robust Design: Weather-resistant and durable for harsh conditions.
Applications
- Drone navigation & obstacle avoidance
- Robotics and automation
- Security surveillance
- Industrial measurement
- Surveying & mapping
How It Works
- Connect via TTL interface (3.3V power supply).
- Send commands (single/1Hz/2Hz mode).
- Receive real-time distance data.
Specifications
| Operating Wavelength | 905nm ±5nm |
| Measurement Range | ≥1,200m (large reflective targets) |
| Blind Zone | ≤10m |
| Accuracy | ≤(1 + L × 0.25%)m
Note: L = target distance (meters) |

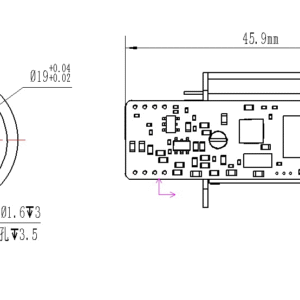

| Measurement Modes | Single-shot, 1Hz, 2Hz |
| Weight | ≤20g |
| Dimensions | ≤Ø23mm × 46mm |
| Power Supply | 2.5V–3.5V (Typical: 3.3V) |
| Power Consumption | Standby: ≤0.6W @3.3V;
Operational: ≤0.8W @3.3V |
| Operating Temperature | -20°C to +50°C |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
Electrical Interface
The electrical interface requirements are as follows:
- Power Supply Voltage: 2.5V–3.5V (Typical: 3.3V).
- Standby Power Consumption: ≤0.6W @3.3V.
- Average Power Consumption: ≤0.8W @3.3V.

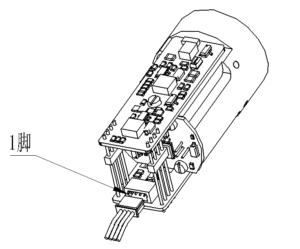

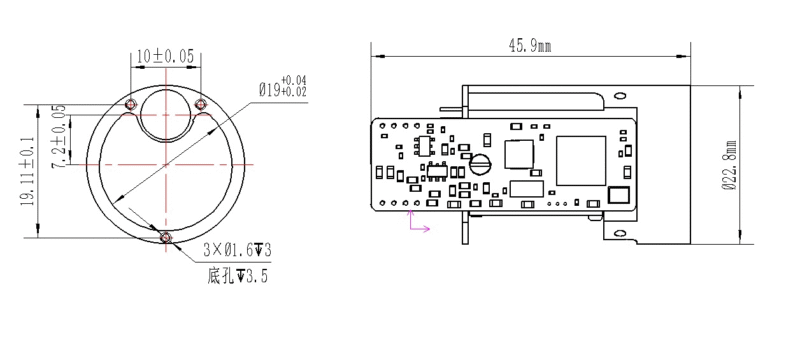

- The host computer connects to the rangefinder via the LNN100-157128-200-4P connector (host side) and A1002WR-S-4P connector (rangefinder side) for interface testing. Pin definitions are listed in the following Table, and the position of Pin 1 is shown in the following Figure.
Table: Power Supply & Communication Port Pin Definitions for the Laser Rangefinder
| Pin No. | Label | Electrical Definition | Signal Direction |
|---|---|---|---|
| P-1 | VIN+ | Positive power input | Power supply |
| P-2 | VIN- | Negative power input | – |
| P-3 | TTL_RXD | Signal input port | Host computer to rangefinder |
| P-4 | TTL_TXD | Signal output port | Rangefinder to host computer |
Notes:
- Pin directionality (“Signal Direction”) explicitly defined for integration purposes.
- Connector models (e.g., LNN100-157128-200-4P) retained as original to ensure compatibility.
