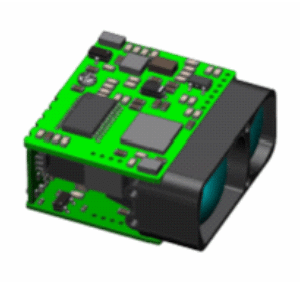

Key Selling Points
- Ultra-Compact & Lightweight: Weighs only 10g, perfect for space-constrained setups.
- High Accuracy: ±1m precision for reliable measurements.
- Versatile Power: Low energy consumption (≤1.5W) with 3-5V compatibility.
- Robust Performance: Operates in -20°C to +60°C environments.
- Easy Integration: TTL communication and plug-and-play design.
- Safety Compliance: 905nm laser (eye-safe with proper use).
Applications
- Drones & UAVs: Navigation, obstacle detection.
- Industrial Automation: Robotics, machinery alignment.
- Security Systems: Perimeter monitoring.
- Outdoor Sports: Hunting, golfing, hiking.
- Surveying & Mapping: Land measurement, construction.
Specifications
| Parameter | Specification |
|---|---|
| Laser Wavelength | 905nm |
| Measuring Range | ≥1500m (large targets) |
| Blind Zone | ≤5m |
| Accuracy | ±1m |
| Measurement Frequency | Single-shot, 1Hz, 2Hz |
| Weight | 10±0.5g |

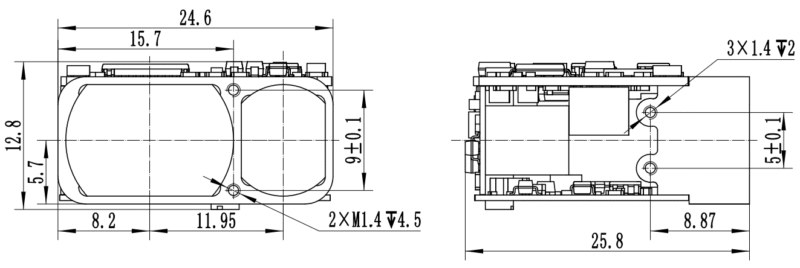

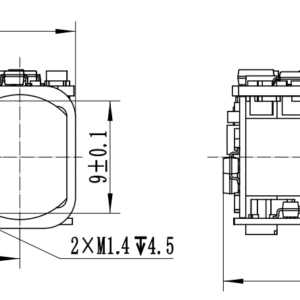

| Dimensions | ≤25.8mm × 24.6mm × 12.8mm |
| Power Supply | 3V–5V DC |
| Power Consumption | Standby: ≤1W |
| Operating Temperature | -20°C to +60°C |
Note：All performance specifications and interfaces can be customized to meet specific requirements.
Electrical Interface
Electrical interface requirements are as follows:
- Power Supply Voltage: 3V to 5V
- Standby Power Consumption: ≤1.2W
- Average Power Consumption: ≤1.5W

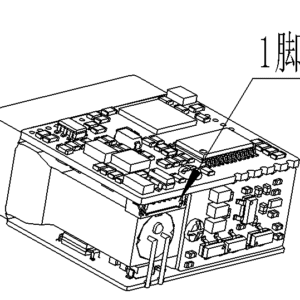

- Connector Compatibility: The host machine uses the 06SUR-32S connector to interface with the SM06B-SURS-TF connector on the rangefinder for interconnection testing. Pin definitions are listed in Table.
Table : HA07A Rangefinder Power Supply and Communication Port Pin Definitions
| Pin Definition | Electrical Characteristics | Signal Direction | |
|---|---|---|---|
| VIN- | Power Supply Negative | Power Supply Input | |
| VIN+ | Power Supply Positive | Power Supply Input | |
| GND | Serial Port Ground | Communication Ground | |
| UART_TX | TTL_3.3V | Serial Port Transmit End | |
| UART_RX | — | Serial Port Receive End | |
| UART_ON | — | Floating/Low = Power Off; High = Power On |
Compliance: Meets CE/FCC/RoHS standards (confirm with manufacturer).
Safety Note: Avoid direct eye exposure to laser beam.
