Key Selling Points

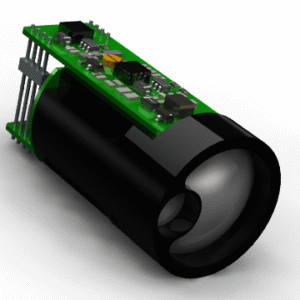

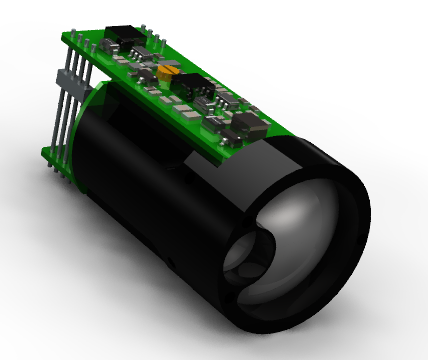

- Ultra-Compact Design: Miniature size (Φ23mm×46mm) for space-constrained applications.
- High Accuracy: ±1m + 0.25%L precision ensures reliable data.
- Rugged Performance: Operates in -20°C to +50°C environments.
- Low Power: 0.3W max consumption for extended use.
- Easy Integration: TTL interface and plug-and-play commands (single/1Hz modes).
Applications
- Ideal for UAV navigation
- robotic obstacle avoidance
- smart traffic systems
- construction surveys
- security monitoring
- outdoor adventures
Specifications
| Operating Wavelength | 905nm |
| Ranging Capability | ≥1000m (large targets) |
| Blind Zone | ≤10m |
| Accuracy | ≤1m + L×0.25% (L = target distance) |
| Ranging Frequency | Single-shot, 1Hz |
| Weight | ≤20g |

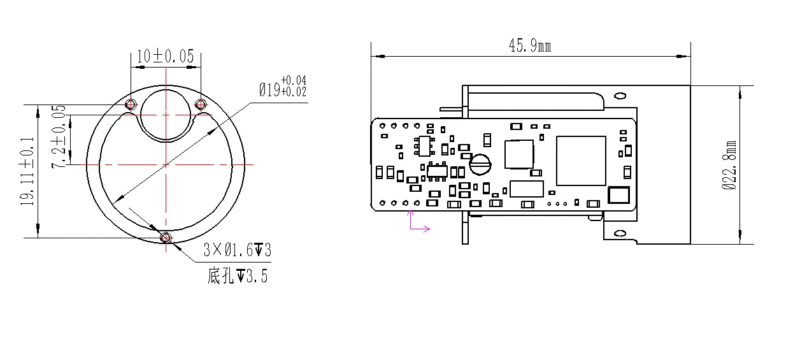

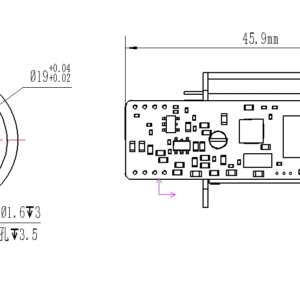

| Dimensions | ≤φ23mm×46mm |
| Operating Voltage | 2.5V–3.5V DC (Typ. 3.3V) |
| Power Consumption | Standby: ≤0.2W; Operating: ≤0.3W @3.3V |
| Environmental Compliance | Operating Temp: -20℃ to +50℃ |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
Electrical Interface
The electrical interface requirements are as follows:
- Power Supply Voltage: 2.5V–3.5V (Typical 3.3V);
- Standby Power Consumption: ≤0.2W;
- Average Power Consumption: ≤0.3W @3.3V;

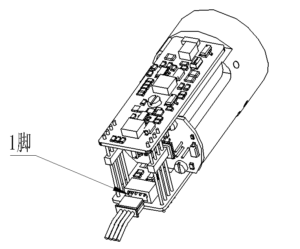

- The host computer connects to the rangefinder via the LNN100-157128-200-4P connector for interoperability testing with the rangefinder-side connector (A1002WR-S-4P). The pin definitions are listed in the following Table.
Table: HA07A Rangefinder Power Supply and Communication Port Pin Definitions
| Pin No. | Label | Electrical Definition | Signal Direction |
|---|---|---|---|
| P-1 | VIN+ | Input Power Positive | Power Supply |
| P-2 | VIN- | Input Power Negative | Power Supply |
| P-3 | TTL_RXD | Signal Input Port | Host to Rangefinder |
| P-4 | TTL_TXD | Signal Output Port | Rangefinder to Host |
Compliance
- CE, FCC, RoHS certified.
