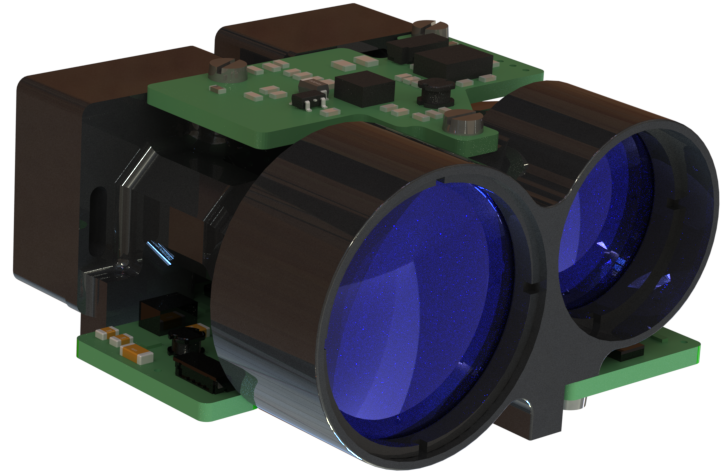

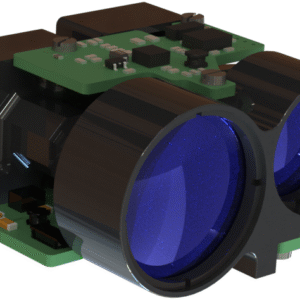

Key Selling Points
- Ultra-Compact & Lightweight (50.5×49.5x29mm, 62g) for easy integration.
- High Accuracy (±2m) and long-range capability (2,500m).
- Multi-Mode Operation: Single-shot, 1Hz/2Hz continuous modes.
- Low Power Consumption (<0.8W) for extended use.
- Robust Design: Resists vibration, humidity, and temperature fluctuations.
- Laser Safety Compliance: Class 1 laser product (eye-safe under normal use).
Functions & Features
- Real-time distance measurement with TTL output.
- Built-in self-diagnostic system for reliability checks.
- Anti-interference technology for stable performance.
Applications
- Drone navigation & obstacle avoidance.
- Industrial automation & robotics.
- Security surveillance & perimeter monitoring.
- Surveying, forestry, and construction.

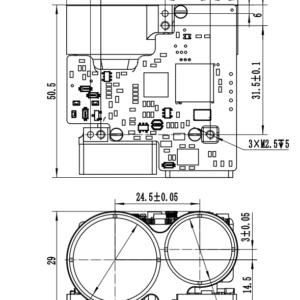

Specifications
| Operating Wavelength | 905nm ±10nm |
| Transmitter Aperture | Φ18.6mm |
| Receiver Aperture | Φ24.2mm |
| Baud Rate | 57600bps |
| Ranging Capacity | ≥2500m (large targets) |
| Blind Zone | ≤15m |
| Accuracy | ±2m (optional ±1m) |
| Detection Rate | ≥98% |
| False Alarm Rate | ≤2% |
| Ranging Frequency | Single-shot, 1Hz, 2Hz |
| Weight | ≤62g |
| Dimensions | ≤50.5mm × 49.5mm × 29mm |
| Electrical Connector | Socket: DF52-8S-0.8H;
Plug：DF52-8P-0.8C |
| Supply Voltage | 4.5V ~ 5.5V |
| Standby Power Consumption | ≤0.8W |
| Average Power Consumption | ≤0.8W |
Note：The nominal distance and accuracy are achieved under the conditions of visibility no less than 8 kilometers and relative humidity no more than 60%.
Electrical Interface

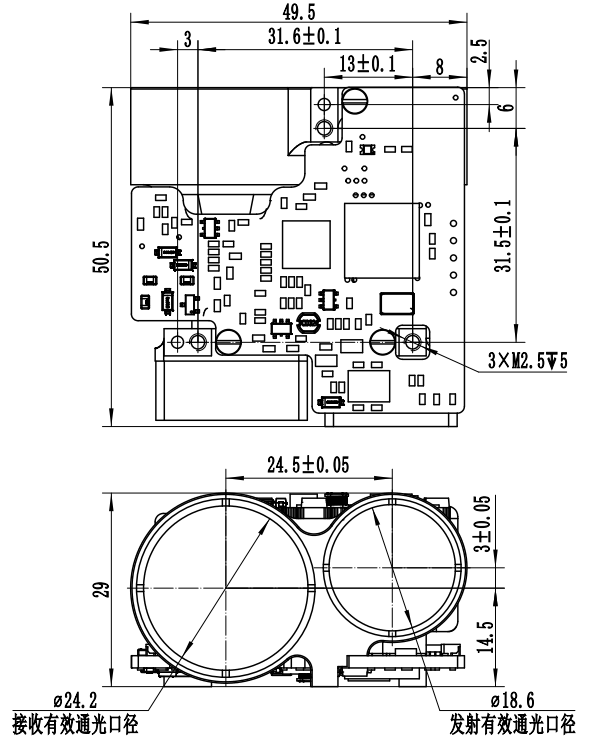

The host device connects to the rangefinder via a DF52-8P-0.8C (8PIN)connector, which interfaces with the DF52-8S-0.8H (8PIN) connector on the rangefinder for interconnection testing. The pin definitions for the rangefinder’s power supply and communication ports are listed in the following table, and the position of Pin 1 on the connector is shown in the following figure.
Table : Rangefinder Power and Communication Port Pin Definitions
| Pin Number | Label | Electrical Definition | Signal Direction |
| P-1 P-2 |
VIN+ | Positive Power Input | Power Supply to Rangefinder |
| P-3 P-4 |
VIN- | Negative Power Input | Power Supply to Rangefinder |
| P-5 | NC | ||
| P-6 | GND | Ground Wire | Ground Wire |
| P-7 | UART_TXD | Signal Output Port | Rangefinder to Host Device |
| P-8 | UART_RXD | Signal Input Port | Host Device to Rangefinder |
Compliance
- CE, RoHS, and IEC 60825-1 (Laser Safety) certified.
