Key Features & Competitive Advantages
- Superior Accuracy
- Zero-bias stability: ≤0.05°/h (10s smoothing), ensuring minimal drift in dynamic conditions.
- Ultra-low random walk coefficient: <0.003°/√h for precise long-term trajectory tracking.
- Dynamic range: ≥±500°/s to handle rapid motion and vibration.
- Robust Design for Extreme Conditions
- Operates seamlessly in -45°C to +65°C environments, suitable for exploration, desert operations, or high-altitude aviation.
- Shock-resistant structure with IP65-rated durability.
- Energy Efficiency & Compact Integration
- Steady power consumption: ≤5W(compatible with battery-powered systems like drones or portable navigation units).
- Ultra-compact dimensions (70x70x29mm, ≤255g) for easy integration into tight spaces.
- Customizable Flexibility
- Scalable performance options: Upgrade to SF-RBT170B for enhanced specs (e.g., zero-bias stability ≤0.02°/h).
- Tailored interfaces and protocols (CAN, RS422, SPI) to match OEM system requirements.
Applications
- Aerospace & UAVs: Attitude heading reference systems (AHRS), autopilot stabilization.
- Autonomous Vehicles: Dead reckoning, sensor fusion for GPS-denied environments.
- Marine & Defense: Subsea ROV navigation, artillery pointing systems, gyrocompasses.
- Industrial Automation: Robotics motion control, precision agriculture machinery.
Technical Specifications
| Performance parameters | SF –RBT170 | SF –RBT170B |
| Zero-bias stability | ≤0.05°/h(10s smoothing) | ≤0.02°/h(10s smoothing) |
| Zero bias repeatability | ≤0.05°/h | ≤0.02°/h |
| Random walk coefficient | <0.003°/√h | <0.002°/√h |
| Scale factor nonlinearity | ≤50ppm | ≤10ppm |
| Scale factor repeatability | ≤50ppm | ≤10ppm |
| Operating temperature | -45~+65℃ | -45~+65℃ |
| Dynamic range | ≥±500°/s | ≥±500°/s |
| Input Voltage | +5V | +5V |
| Steady state power consumption | ≤5W | ≤5W |

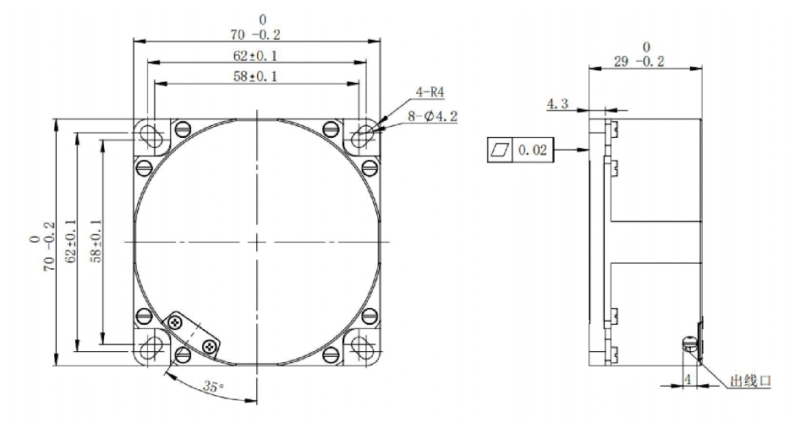

| External dimension | 70×70×29mm | 70×70×32mm |
| Weight | ≤255g | ≤280g |
Why Choose SF-RBT170?
- Fast Deployment: Plug-and-play design reduces integration time by 30% vs. traditional FOGs.
- Cost-Effective: Competitive pricing with no compromise on MIL-grade performance.
- Global Support: 24/7 technical assistance and 1-year warranty (adjust based on client’s policy).
Ideal for engineers, system integrators, and OEMs seeking a reliable, scalable solution for precision navigation in harsh environments.
Contact us to request a demo or tailored configuration.
