Key Features & Benefits
- Ultra-High Precision:
- Zero-bias stability ≤0.1°/h (10s smoothing) ensures long-term accuracy.
- Random walk coefficient <0.01°/√h for minimal drift in dynamic conditions.
- Robust Design:
- Operates in “-45°C to +65°C”extremes with anti-vibration construction.
- Magnetic shielding eliminates interference from electromagnetic environments.
- Energy Efficiency:
- ≤5W steady power consumption, ideal for battery-powered systems.
- Scalable & Customizable:
- Adjustable parameters (e.g., dynamic range up to ±800°/s) and interfaces tailored to project needs.
Target Applications
- Aerospace & Defense: Attitude control for drones, UAVs, and satellite systems.
- Autonomous Navigation: Integration with GNSS/INS for land, marine, and aerial vehicles.
- Industrial Automation: Stabilization in robotics, AGVs, and precision machinery.
- Emerging Tech: VR/AR motion tracking and inertial measurement units (IMUs).
Competitive Selling Points
- Compact & Lightweight: 60x60x32.5mm, ≤160g—saves space in dense systems.
- Cost-Effective Performance: Combines premium specs (50ppm nonlinearity) with budget-friendly pricing.
- Plug-and-Play Integration: Standard +5V input and digital output simplify installation.
- Sustainability: RoHS-compliant materials align with EU eco-regulations.
Technical Specifications
| Performance parameters | SF –RBT160 |
| Zero-bias stability | ≤0.1°/h(10s smoothing) |
| Zero bias repeatability | ≤0.1°/h |
| Random walk coefficient | <0.01/√h |
| Scale factor nonlinearity | ≤50ppm |
| Scale factor repeatability | ≤50ppm |
| Operating temperature | -45~+65℃ |
| Dynamic range | ≥±800°/s |
| Input Voltage | +5V |
| Steady state power consumption | ≤5W |

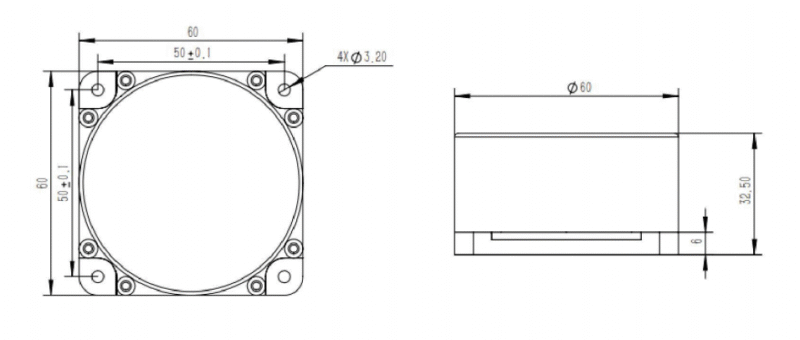

| External dimension | 60×60×32.5mm |
| Weight | ≤160g |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
Why Choose SF-RBT160?
Designed with Western market preferences in mind, the SF-RBT160 emphasizes user-centric flexibility, environmental resilience, and ease of integration.
Customization & Compliance: Contact us to adapt specifications, or interfaces (CAN, RS422) for your regional requirements.Compliant with MIL-STD-810G for shock/vibration resistance (optional certifications available).
