Key Features
- Triaxial Closed-Loop Design: Measures angular velocity across X/Y/Z axes with minimal drift.
- High Stability: Zero-bias stability ≤1°/h (10s smoothing) and repeatability ≤1°/h.
- Low Power Consumption: Steady-state power ≤5W for extended operational efficiency.
- Wide Dynamic Range: Supports ±1000°/s for high-speed or agile motion tracking.
- Compact & Lightweight: 60x60x54mm footprint, ≤300g weight—ideal for UAVs and robotics.
- Broad Temperature Resilience: Operates reliably from -45°C to +65°C, suitable for harsh environments.
- Customizable Interfaces: Flexible I/O and performance parameters tailored to application needs.
Applications
- Guided Munitions: Precision navigation for seeker systems.
- Unmanned Aerial Vehicles (UAVs): Attitude stabilization and autonomous flight control.
- Robotics: Real-time motion tracking for industrial or service robots.
- Inertial Navigation Systems (INS): Dead reckoning in GPS-denied environments.
- Marine & Land Vehicles: Stabilization and path planning.
Competitive Advantages (Selling Points)
- Cost-Effective: Optimized design reduces production costs without compromising performance.
- Fast Data Output: High update rate ensures real-time responsiveness.
- Rugged Reliability: Industrial-grade construction for vibration and shock resistance.
- Easy Integration: Plug-and-play compatibility with common INS architectures.
- Scalability: Customizable specs (e.g., interfaces, power requirements) to meet niche demands.
Technical Specifications
| Performance parameters | SF–RBT354 |
| Zero-bias stability | ≤1°/h(10s smoothing) |
| Zero bias repeatability | ≤1°/h |
| Random walk coefficent | <0.05°/√h |
| Scale factor nonlinearity | ≤100ppm |
| Scale factor repeatability | ≤100ppm |
| Operating temperature | -45~+65℃ |
| Dynamic range | ≥±1000°/s |
| Input Voltage | +5V |
| Steady state power consumption | ≤5W |

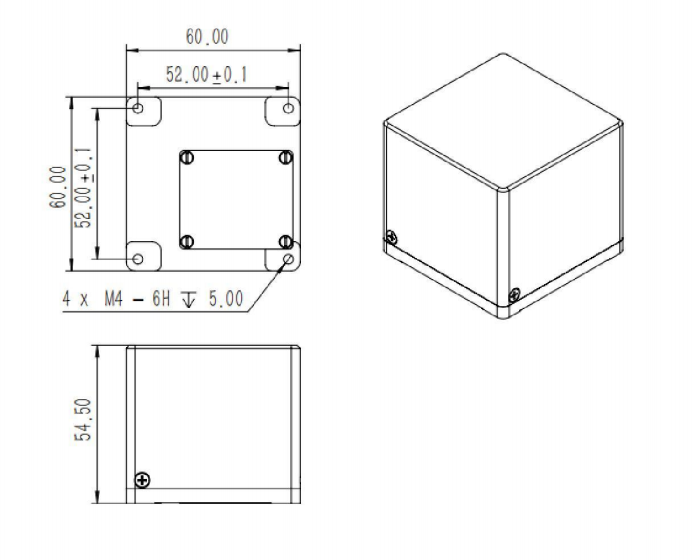

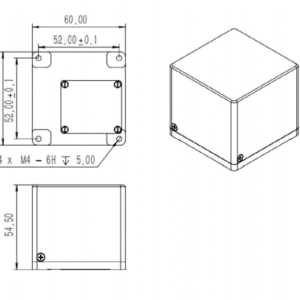

| External dimension | 60×60×54mm |
| Weight | ≤300g |
Compliance & Certifications
Note: Compliance standards (e.g., CE, RoHS, MIL-STD) and certifications can be customized per customer requirements.
Customization available for technical specs, certifications, and interfaces. Contact US for tailored solutions.
